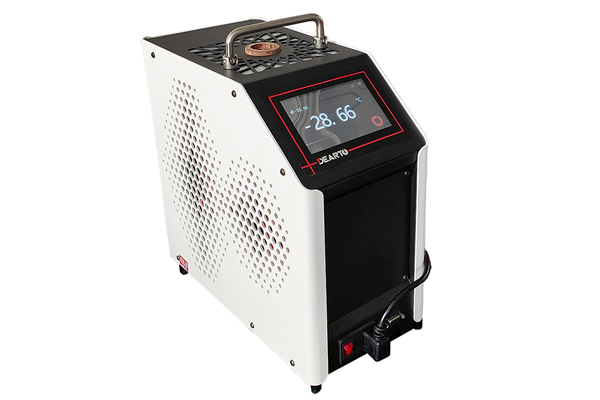

DTG Low - Temperature Smart Dry Block Calibrator
Overview
The DTG smart Dry-Block Calibrator is a reliable and stable low, medium, and high-temperature constant temperature source suitable for both field and laboratory use. It meets the requirements of on-site calibration applications in terms of accuracy, speed, stability, and portability. Designed with a strong focus on user needs in field environments, the instrument combines lightweight construction, portability, and rapid operation while delivering stability, consistency, and accuracy comparable to similar laboratory equipment.
Product Features
Smart touchscreen interface: High-resolution color capacitive screen with bilingual (Chinese/English) support. Temperature units (°C/°F) can be freely switched. Intuitive operation with real-time calibration status display.
Rapid calibration: Fast temperature ramp-up and cooldown with minimal stabilization time.
Lightweight and portable: Compact and lightweight with an insulated handle located away from the heat zone—ideal for field calibration and verification work.
Customizable inserts: Inserts can be customized based on the insertion depth and diameter of the sensors under test.
Built-in protection: Internal over-temperature protection ensures safe and stable operation.
Multi-point correction: Supports automatic calibration and correction at multiple temperature points. Segmental PID control enables one-button heating and fully automatic temperature control.

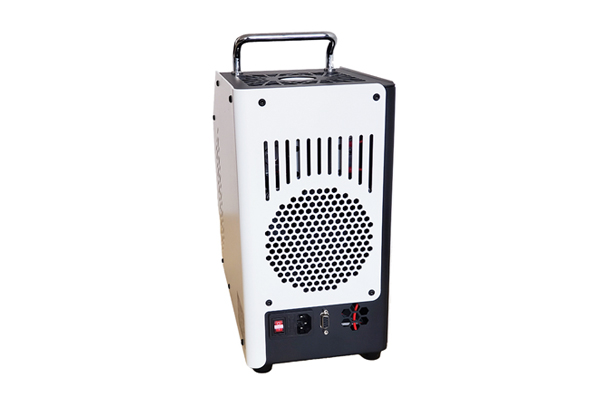

Communication interface: Equipped with RS-232 communication port. Enables data transfer to PC with automatic data logging.
|

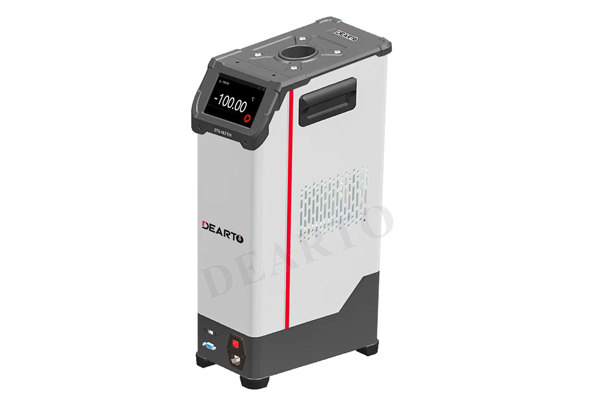

Ultra-Low temperature Smart Dry Block Calibrator |
|||
|
Model |
DTG-ULT60G |
DTG-ULT80G |
DTG-ULT100G |
|
Temp. range |
-60 ℃ to 40 ℃ |
-80 ℃ to 40 ℃ |
-100 ℃ to 40 ℃ |
|
Display resolution |
0.01℃ |
||
|
Dimensions (L×W×H ) |
195×320×530 (mm) |
||
|
Weight |
16 kg |
||
|
Display accuracy |
±0.2 ℃ @ -100 to 0 ℃ |
||
|
Radial stability |
±0.1 ℃@ -100 ℃ to 0 ℃ |
||
|
Stability |
±0.03 ℃ @ -100 ℃ to 0 ℃ |
||
|
Hole sizes of standard insert† (mm) |
Insertion Block Diameter：Φ30; Please specify the insertion depth and outer diameter of the sensor to be calibrated when placing an order (customizable). |
||
|
Language/unit |
Chinese / English Language Switch; ℃ and ℉ Unit Toggle |
||
|
Control method |
Smart Touchscreen with Multi-Point Calibration |
||
|
Power supply |
220 V / 50 Hz（or 110 V / 60 Hz） |
||
|

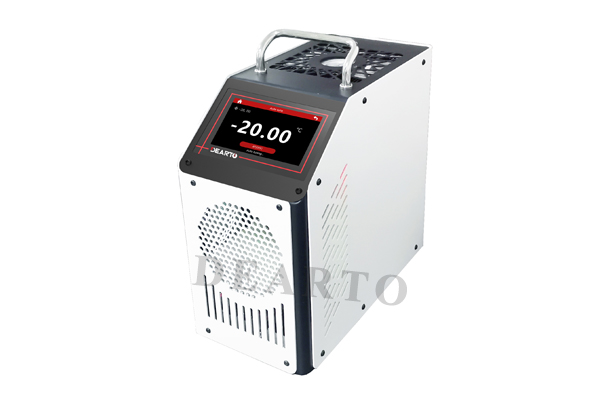

Low-Temperature Smart Dry Block Calibrator |
|||
|
Model |
DTG-140G |
DTG-150G |
DTG-U42G |
|
Temp. range |
-20 ℃ to 140 ℃ |
-30 ℃ to 150 ℃ |
-42 ℃ to 150 ℃ |
|
Display resolution |
0.01℃ |
||
|
Dimensions (L×W×H) |
170×320×330 (mm) |
199×328×364(mm) |
|
|
Weight |
8 kg |
10 kg |
|
|
Display accuracy |
±0.2 ℃ |
±0.2 ℃ |
|
|
Radial stability |
±0.2 ℃ |
±0.2 ℃ |
|
|
Stability |
±0.15 ℃ |
±0.15 ℃ |
|
|
Hole sizes of standard insert (mm) |
Φ4.5, Φ6.5, Φ8, Φ10; Please specify the insertion depth and outer diameter of the sensor to be calibrated when placing an order (customizable). |
||
|
Language/unit |
Chinese/ English Language Switch; ℃ and ℉ Unit Toggle |
||
|
Control method |
Smart Touchscreen with Multi-Point Calibration |
||
|
Power supply |
220 V / 50 Hz（or 110 V / 60 Hz） |
||
