2. Types of Temperature Calibrators

2.1 Dry-block calibrators

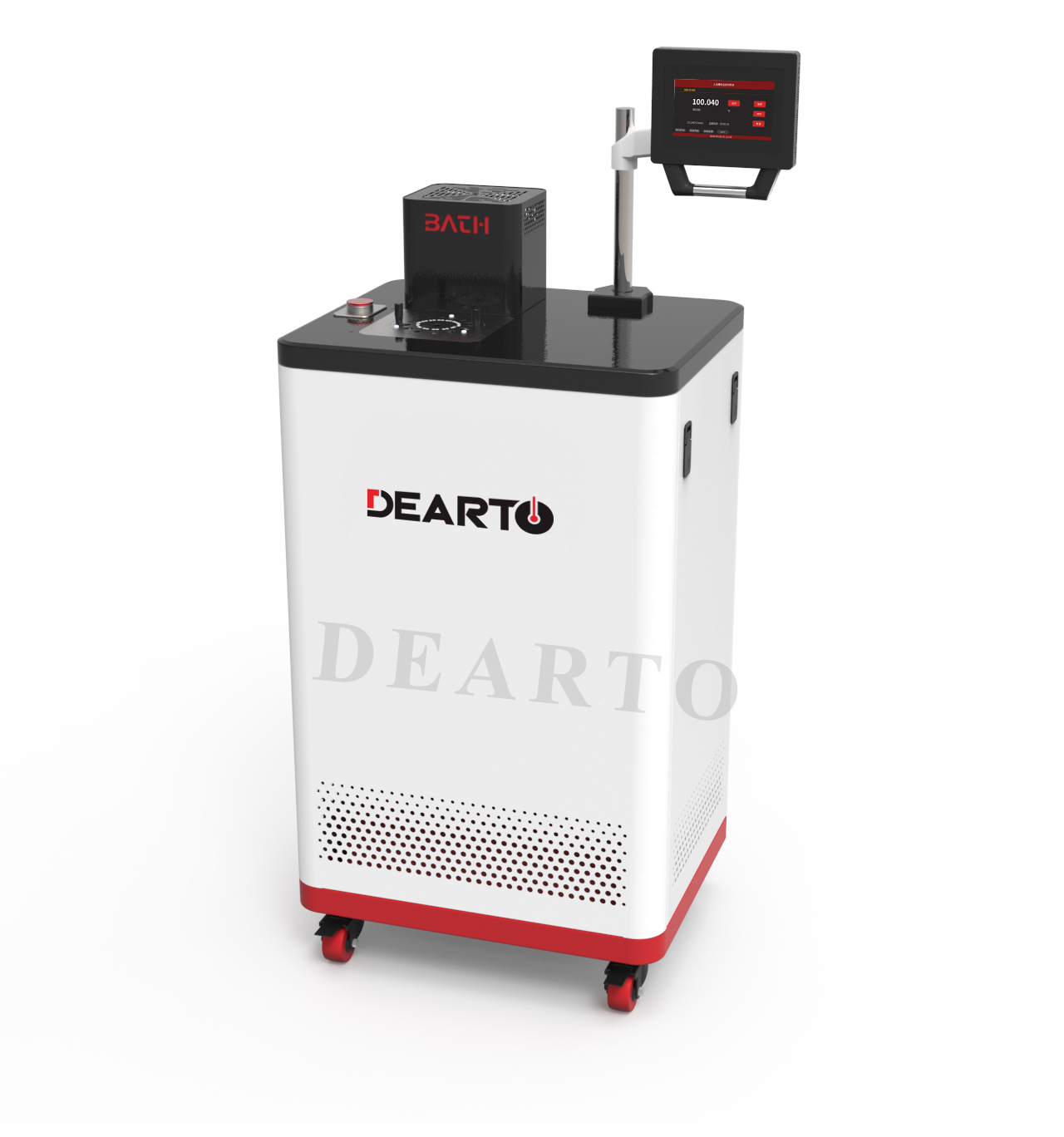

2.2 Liquid baths:

2.3 Infrared calibrators:

2.4 Fixed-point cells:

3. How Does a Temperature Calibrator Work?

• Prepare the calibrator: Turn on the calibrator and allow it to reach a stable temperature.
• Connect the DUT: Connect the DUT to the calibrator according to the manufacturer's instructions.
• Set the temperature: Set the calibrator to the desired temperature.
• Wait for stabilization: Allow the DUT to stabilize at the set temperature. This may take a few minutes.
• Record the readings: Record the readings of both the calibrator and the DUT.
• Calculate the error: Calculate the error between the readings of the calibrator and the DUT.

4. How to choose the Right Temperature Calibrator?

• Temperature range: Consider the range of temperatures you need to calibrate your sensors for. Some calibrators have a wide range, while others are more limited.

• Accuracy and stability: The accuracy of a calibrator is how close its readings are to the actual temperature. The stability of a calibrator is how well it maintains a constant temperature.

• Well flexibility: Some calibrators have multiple wells, which allow you to calibrate multiple sensors at the same time. Others have interchangeable inserts, which allow you to calibrate a variety of sensor sizes and shapes.

• Portability: If you need to calibrate sensors in the field, you'll need a portable calibrator. These are typically smaller and lighter than benchtop calibrators.

• Sensor immersion: Some calibrators allow you to immerse your sensors in a liquid bath, while others use a dry block method. Immersion calibrators are generally more accurate, but dry block calibrators are more portable.

• Throughput: If you need to calibrate a lot of sensors quickly, you'll need a calibrator with high throughput. This means that the calibrator can heat up and cool down quickly, and that it can calibrate multiple sensors at the same time.

5. How often should you calibrate?

6. Common Issues and Troubleshooting

Common Temperature Calibrator Issues

• Temperature Stability: Temperature stability refers to the ability of the calibrator to maintain a consistent temperature over time. Fluctuations in temperature can introduce errors in the calibration process.
• Temperature Uniformity: Temperature uniformity refers to the consistency of temperature within the calibrator's well or chamber. Non-uniformity can lead to inaccurate readings if the sensor is not placed in the optimal location.
• Hysteresis: Hysteresis is the phenomenon where the temperature reading varies depending on whether the temperature is being increased or decreased. This can affect the accuracy of calibration, especially near critical temperature points.
• Sensor Insertion Depth: Improper sensor insertion depth can significantly impact temperature readings. The sensor should be inserted to the recommended depth to ensure accurate measurement.
• External Reference Errors: If using an external reference thermometer for calibration, ensure it is properly calibrated and traceable to a national standard. Errors in the reference thermometer can translate into inaccurate calibrations.
• Environmental Factors: Environmental factors such as ambient temperature fluctuations, drafts, and vibrations can affect the stability and accuracy of the calibrator.

Troubleshooting Temperature Calibrator Issues

• Check Temperature Stability: Monitor the calibrator's temperature readings over time to assess its stability. Consult the manufacturer's specifications for acceptable stability limits.
• Verify Temperature Uniformity: Map the temperature distribution within the calibrator's well or chamber using a reference thermometer. Identify any areas of non-uniformity and adjust the sensor placement accordingly.
• Evaluate Hysteresis: Perform calibration cycles at different temperature set points and compare the readings. Significant differences indicate hysteresis and may require further investigation or calibration adjustments.
• Confirm Sensor Insertion Depth: Refer to the sensor's specifications and the calibrator's manual to ensure proper insertion depth. Adjust the depth as needed to optimize temperature measurement.
• Validate External Reference: Verify the calibration certificate of the external reference thermometer to ensure its validity and traceability. If necessary, recalibrate the reference thermometer before using it for further calibrations.
• Control Environmental Factors: Minimize environmental disturbances by placing the calibrator in a stable environment away from direct sunlight, drafts, and vibrations. If necessary, use temperature-controlled chambers or enclosures.
• Perform Regular Maintenance: Follow the manufacturer's recommended maintenance schedule to clean, inspect, and calibrate the temperature calibrator regularly. Preventive maintenance can prevent issues and extend the calibrator's lifespan.
• Seek Professional Assistance: If the troubleshooting steps fail to resolve the issue, consult a qualified calibration technician or the manufacturer's support team for further diagnosis and repair.

7. Temperature Calibrator Maintenance

Daily Checks:

Monthly Checks:

Annual Maintenance:

8. Latest Technological Advancements in Temperature Calibration

• Smart Sensors with Self-Calibration Capabilities
• Wireless Calibration and Data Logging
• Automated Calibration Systems
• Advanced Calibration Baths and Dry Wells
• Artificial Intelligence (AI) and Machine Learning (ML) Integration
• Cloud-Based Calibration Management Systems
• Non-Contact Temperature Calibration Methods
• Reference Thermometers with Enhanced Stability and Accuracy
• Calibration Software with Advanced Features
• International Collaboration and Standardization

9. Tips for Efficient Temperature Calibration

• Understand the Requirements: Before embarking on the calibration process, clearly define the accuracy requirements and the specific temperature range that needs to be calibrated. This information will guide the selection of appropriate calibration equipment and procedures.

• Choose the Right Equipment: Utilize calibrated reference thermometers or temperature calibrators that meet or exceed the accuracy requirements of the instruments being calibrated. Ensure that the reference thermometers are traceable to national or international standards.

• Establish a Stable Environment: Perform calibrations in a stable environment with minimal temperature fluctuations. This will minimize the impact of ambient conditions on the calibration results.

• Handle Instruments Carefully: Handle the instruments being calibrated with care to avoid damage or contamination. Follow the manufacturer's instructions for proper handling and cleaning.

• Use Appropriate Calibration Procedures: Employ appropriate calibration procedures based on the type of instrument being calibrated. For instance, use dry-well calibrators for thermocouples and RTDs, and liquid baths for temperature sensors.

• Immerse Instruments Properly: Ensure that the instruments are properly immersed in the calibration medium to achieve accurate temperature readings. Follow the manufacturer's recommendations for immersion depth and placement.

• Allow Sufficient Stabilization Time: Allow the instruments and the reference thermometer to stabilize at each temperature point before taking readings. This ensures that the readings reflect the true temperature of the calibration medium.

• Monitor Calibration Data: Continuously monitor the calibration data throughout the process to identify any anomalies or discrepancies. Promptly address any issues that arise to maintain the integrity of the calibration results.

• Document the Calibration Procedure: Document the calibration procedure in detail, including the equipment used, calibration points, and observed readings. This documentation serves as a record of the calibration process and ensures traceability.

• Maintain Calibration Records: Maintain accurate and up-to-date calibration records for each instrument. These records help track the calibration history and identify instruments that require recalibration.

• Consider Outsourcing Calibration: For large volumes of instruments or complex calibration requirements, consider outsourcing the calibration process to a reputable calibration laboratory. This can save time and resources while ensuring high-quality calibration results.
