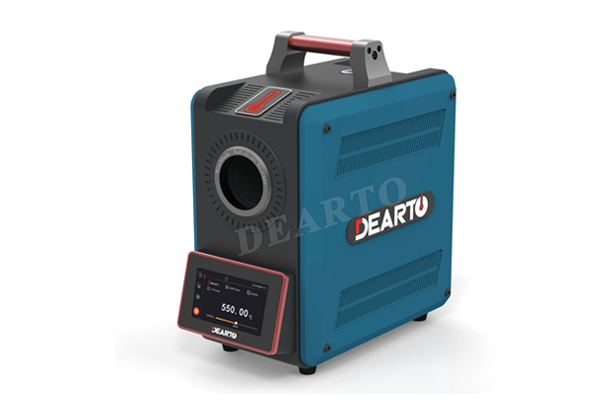

DTM-B Portable Blackbody Radiation Source (RT+10 ~ 550℃）
A blackbody radiation source is an essential standard device used in infrared calibration, precision temperature measurement, and related scientific and industrial applications. It provides a stable and highly accurate reference for calibrating infrared thermometers, thermal imagers, and other non-contact temperature measurement instruments. Owing to its excellent precision, stability, and adaptability, it is widely employed in calibration laboratories, industrial quality control, and scientific research environments.
Full-range resolution of 0.01 °C: Selectable in three levels: 0.01 °C, 0.1 °C, and 1 °C.
6- to 10-point temperature calibration and correction： Automatically performs linear fitting between set value (SV) and process value (PV) to ensure accurate temperature control.
Capacitive touchscreen： Smart human-machine interface with multi-window display.
Adjustable heating rate： Supports uniform ramp-up based on user-defined values for smooth and controlled temperature transitions.
Stability indicator： Real-time operation data display for intuitive system monitoring.
Bilingual interface： Switchable between Chinese and English for international use.
Over-temperature protection： Dual protection via hardware and software.
Communication options： Supports USB, Wi-Fi, WLAN, and RS-232 serial communication.
Temperature unit switching： Supports °C, °F, and Kelvin.
Mobile App control： Enables remote control and real-time monitoring via smartphone.
Technical indicators
|
Model |
DTM-550BG |
|
Temp. range |
RT+10 ℃~550 ℃ |
|
Control method |
Smart Touch Screen |
|
Emissivity |
Better than 0.995 |
|
Temp. resolution |
0.01°C (full scale) |
|
Target size (D × L in mm) |
Φ65mm × 160mm |
|
Target shape |
Cylindrical / conical |
|
Accuracy |
± 0.3℃ @ RT ≤ t ≤ 300℃ |
|
± 0.5℃ @300℃＜ t ≤ 550℃ |
|
|
Stability |
± 0.1℃ / 10 min @ RT ≤ t ≤ 100℃ |
|
± 0.1℃ / 10 min @ 100 ℃＜ t ≤ 300 ℃ |
|
|
± 0.2 ℃ / 10 min @ 300 ℃＜ t ≤ 40 0℃ |
|
|
± 0.2℃ / 10min @ 400℃＜ t ≤ 500℃ |
|
|
± 0.3℃ / 10min @ 500℃＜ t ≤ 550℃ |
|
|
Temperature uniformity |
0.10 ℃ @ RT ≤ t ≤ 100 ℃ |
|
0.30 ℃ @ 100 ℃＜ t ≤ 300 ℃ |
|
|
0.45 ℃ @ 300 ℃＜ t ≤ 400 ℃ |
|
|
0.60 ℃ @ 400 ℃＜ t ≤ 500 ℃ |
|
|
0.75 ℃ @ 500 ℃＜ t ≤ 550 ℃ |
|
|
Heating time |
35 min50 ℃ → 300 ℃） |
|
58 min（50 ℃ → 550 ℃） |
|
|
Cooling time |
2 h 30 min（300 ℃→50 ℃） |
|
3 h 30 min（550 ℃→50 ℃） |
|
|
Power |
1000 W |
|
Interfaces |
RS232 / USB / WIFI / LAN |
|
Power supply |
220V AC（±10%） / 50Hz; 5.5A |
|
Ambient temperature |
(0～45) ℃; < 80% RH , non-condensing |
|
Weight |
Appr. 10 kg |
|
Overall dimensions（mm) |
345(L)× 200(W)×360(H) |
