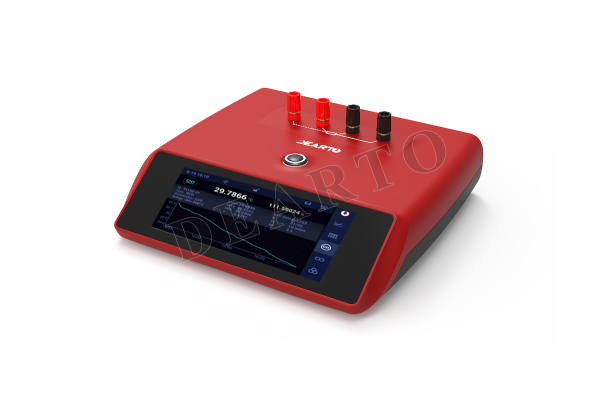

DTMA-101G Portable Thermometer Readout

Overview

    The DTMA-101G portable thermometer readout is a high-precision instrument designed for metrology, research, and industrial applications. Compatible with various sensors, it offers advanced features like automatic data correction and traceable history, delivering reliable performance across demanding temperature measurement tasks.

Product Features

Smart capacitive touchscreen

DTMA-101 uses advanced capacitive sensing with a multi-functional display interface for intuitive operation.

Multi-point correction

8-point correction is supported. Correction values are stored and auto-matched to the connected sensor. Dates of correction are automatically recorded.

Real-time data curve display

Displays the most recent 200 data curves to support trend analysis.

Multi-unit display

Temperature is shown in °C, K, °F, and resistance in Ω, with max, min, average, and stability values displayed in real time.

Calibration modes

Calibration can be completed using 1-point, 2-point, or 3-point mode. Calibration dates are automatically recorded for traceability.

Built-in sensor parameter database

It ensures accurate measurements across a wide range.

Alarm notification

Visual alarm triggers when measurements exceed user-defined thresholds.

Anti-mistouch design

Prevents accidental parameter changes. Allows the user to freeze the current data display for easy recording.

Customizable sampling interval

Users can configure the data acquisition interval to match different application requirements.

Standards compliance

Fully compliant with the ITS-90 international temperature scale, and supports Pt sensors with alpha values of 0.00385 (385), 0.003911 (3911), 0.003916 (3916), and 0.003926 (3926), ensuring high compatibility and reliability.

Custom sensor support

Sensor customization is available to meet specific environmental or application needs.

Product Parameters
