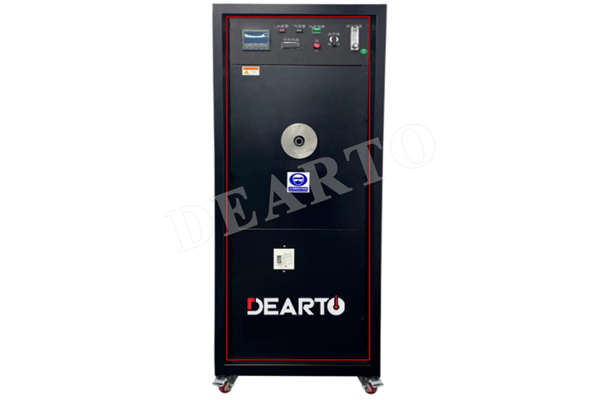

High Temperature Blackbody Radiation Source

Product Features

Blackbody Radiation Source is a device that plays a key role in infrared calibration, temperature measurement and related scientific and industrial applications.

Model Selection

DTR-50NG
DTR-800G
DTR-1700G

DTM-35NBG
DTM-20NBG
DTM-10NBG
DTM-550BG

DTME-50G
DTSE-50G

DTM-2050G
DTM-2350G
DTM-2650G
DTM-3050G

Request a Quote

Or call +86 538-5050959

Description

Download

Overview

A blackbody radiation source is an essential standard device used in infrared calibration, precision temperature measurement, and related scientific and industrial applications. It provides a stable and highly accurate reference for calibrating infrared thermometers, thermal imagers, and other non-contact temperature measurement instruments. Owing to its excellent precision, stability, and adaptability, it is widely employed in calibration laboratories, industrial quality control, and scientific research environments.

Technical Parameters

Name	High Temperature Blackbody Radiation Source			Ultra-high Temp. Model
Model	DTM-2050G	DTM-2350G	DTM-2650G	DTM-3050G
Temperature range	300℃~2050℃	600℃~2350℃	600℃~2650℃	600℃~3050℃
Emissivity	Nearly flat at 0.995	Nearly flat at 0.995		Nearly flat at 0.995
Cavity Diameter	25.4mm (1.0'')	25.4mm (1.0'')		25.4mm (1.0'')
Temperature Stability	±1℃	±1℃		±1℃
Accuracy	0.25% of reading ±1℃	0.25% of reading ±1℃		0.25% of reading ±1℃
Power	14kW	25kW		25kW
Dimensions(mm)	600(L)×1800(W)×800(H)	600(L)×1800(W)×800(H)		600(L)×1800(W)×800(H)
Weight	Appr. 175kg	Appr. 175kg		Appr. 175kg
