The Product Description

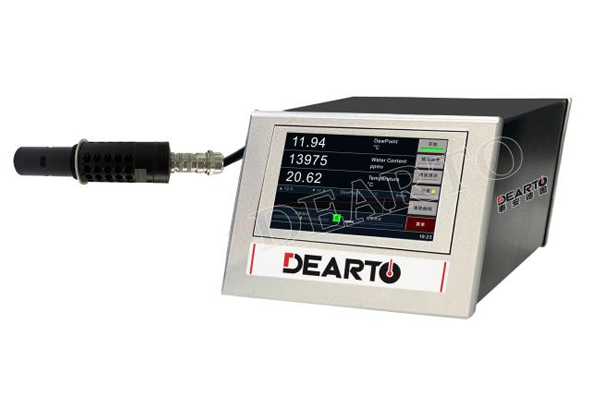

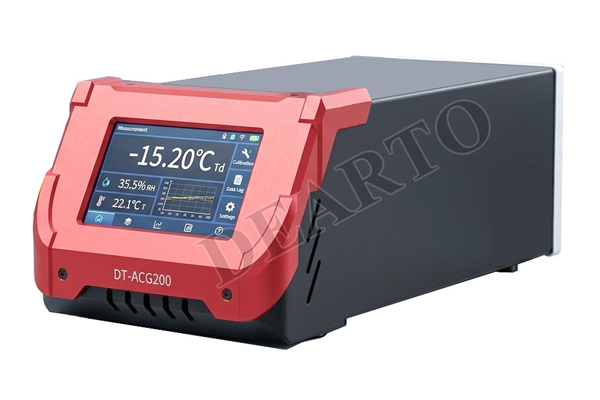

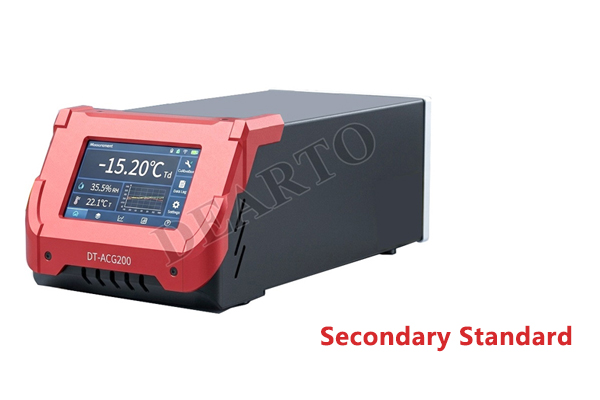

The DT-ACG200G Chilled Mirror Precision Dew Point Meter adopts an open design, and the split sensor can be installed in the sampling gas path or placed in the environment to be detected. The principle is that the LED light source emits light onto the mirror surface, the light reflected by the mirror surface is measured by the photoelectric sensor, and the occurrence of dew can be detected by using the change in light intensity measured by the photoelectric sensor; the control circuit controls the mirror surface temperature at the critical point of the dew condensation temperature, and the platinum resistance thermometer in the mirror surface transmits the measured cooling surface temperature data to the panel for display. This equipment has high precision, wide range, good stability and no drift, and is widely used in temperature and humidity metering work in metering units and other fields.
Dew point range: -30°C to +90°C
5%RH to 99%RH (non-condensing) ;
Dew point measurement accuracy: ±0.15°C ;
Repeatability: ±0.05°C, resolution: 0.01°C ;
Temperature measurement range: -50°C to +180°C,
Temperature sensor accuracy: ±0.1°C.
Features/Advantages
1.Graphic-guided UI with intuitive display and rich content,User-defined analog signal output.
2.Open design, split humidity chilled mirror sensor;Temperature sensor.
3.32-bit high-speed microprocessor, 24-bit micro-power analog-to-digital converter, high-precision signal acquisition and control system.
4.Digital fuzzy control technology, intelligent algorithm design, dew point automatic balancing system, and short measurement time.
5.Intelligent judgment and fault self-diagnosis reminder function;
Comprehensive client PC software, supporting parameter setting.
6.Adopts anti-interference modular design to achieve electrical isolation;
Intelligent mirror surface inspection and cleaning system.
Performance Parameters
1.Data communication: USB communication, RS232, standard Modbus-RTU protocol, dedicated intelligent algorithm,
high precision and high repeatability.
2.Communication methods: 3-channel analog output, with multiple electrical signal output options including 4~20mA, 0~20mA, 0~24mA, 0~5V, and 0~10V.
3.Data storage:
Supports data storage via SD card, with a maximum capacity of 32GB.
4.Display parameters: ℃, ℉, PPMv, PPMw, RH (%), g/kg, mg/m³, with support for Chinese-English switching, etc.
5.Host dimensions: 171 (H) × 153 (W) × 290 (D) ;
Host weight: 2.5 kg.
6.Operation interface: 4.3" LCD touch screen with an intelligent operating system, featuring simple operation.
Technical Parameters
|
Product model
|
DT-ACG200G
|
|
Measuring range(℃)
|
Temperature:-30℃ ~ +90℃
Dew point: 5%RH ~ 95%RH（non-condensing）
|
|
Dew point accuracy(℃）
|
±0.15
|
|
Resolution(℃) |
0.01 |
|
Repeatability(°C)
|
±0.05 |
|
The minimum dew point measured at 20°C
|
-30℃
|
|
Response time(min)
|
±1℃/s
|
|
Mirror material
|
Rhodium Plated Copper
|
|
Body material
|
Aluminum Alloy
|
|
Cable length
|
3m, 5m, 10m
|
|
Size and Weight
|
Φ46*156 mm
|
0.25 kg
|
|
Temperature sensor (integrated)
|
Pt100, Accuracy: ±0.1 ℃;Temp. range: -50 ℃~180 ℃
|
|
Temperature sensor (remote)
|
4-wire Pt 100 , Accuracy: ±0.1 ℃ , Cable length: 3 m
|
|
Environmental conditions
|
Temperature: -20 to +70°C; Sample gas conditions: Operating temperature: -40 to 90 °C
Pressure: 0 to 20 bar (290 psi); Operating pressure: 0 to 100 kPa
Flow rate: Atmospheric (ambient), flowing sample gas (0.3 to 1 L / min)
|
