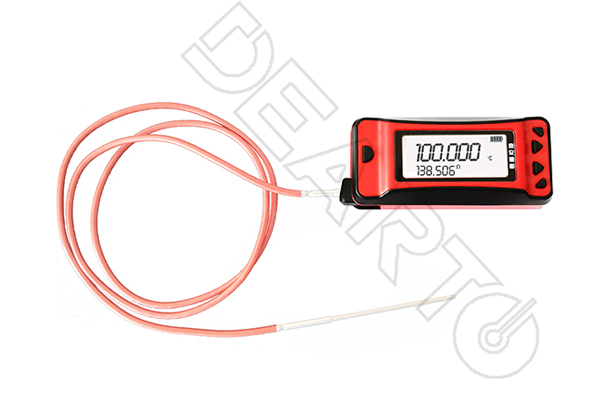

DTSW-LcG Standard (Precision) Digital Thermometer

Product Features

Accurate and reliable: excellent accuracy indexes, annual change is better than that of 0.05 ℃, the electric temperature less than 1 PPM / ℃

Wireless communication: real-time data can be transmitted to the computer screen through wireless communication

Curve display: computer software can display 32 thermometer real-time curves simultaneously

Data recording: it can store the temperature measurement results of 16,000 bands

Model Selection

DTMA-101G

DTMC-mK301-PRTG
DTMC-mK301G
DTMC-mK301HG
DTHPA-mK301G

DTMC-2G
DTMC-4G
DTMC-6G
DTMC-8G

DTSW-LcG

DTSW-1G
DTSW-2G
DTSW-LcG

Request a Quote

Or call +86 538-5050959

Description

Download

Introduction

DTSW-LcG Standard (Precision) Digital Thermometer, is the latest in the field of industrial temperature calibration, precision measurement, its accuracy, and repeatability can be achieved better than 0.05 ℃ / year, lithium batteries don't need to replace the battery life is long, easy to carry and intuitive readings, strong and durable. It can not only be used as a temperature standard in the laboratory but also can provide reliable, accurate and high-precision temperature measurement in the industrial field.

Technical Parameters

Product Name	Stick Standard (Precision) Digital Thermometers				Standard (Precision) Digital Thermometers		Industrial Grade Digital Thermometers
Model	DTSW-IIG	DTSW-1-AG		DTSW-1-BG	DTSW-LcG		DTSW-2G	DTSW-kLG
Temp. Range	-5~60℃	-80~160℃		-80~300℃	-30~150℃	-50~150℃	-80~300℃	-80~400℃
Accuracy	≤0.01℃	0.04+0.005%FS		0.05+0.01%FS	±0.05℃		0.1℃	0.2℃
Calibration Period	one year				one year		one year
Host Temperature Coefficient	＜1ppm/℃				＜1ppm/℃		＜1ppm/℃
Sensor Length	500mm（19.68 in）				1~1.5m		500mm（19.68 in）
Sensor Diameter	6mm				Meets the requirements of the 1076-2020 calibration specification		6mm
Sensor Material	316 stainless steel (medical, food grade)				Flexible cord		316 stainless steel (medical, food grade)
Sensor Specifications	Thin Film Platinum Resistors		Wirewound Platinum Resistors		Wirewound Platinum Resistors		Wirewound Platinum Resistors
Resolution	0.001℃			Charging Voltage			DC 5V
Sampling Rate	0.5s, 1s, 2s configurable			Warm-up Time			1-minute warm-up is effective
Thermal Response Time Constant	30 s			Communication Module Operating Temperature			−20℃ ~ 60℃（-4℉~140℉）
li-ion Battery Fill Time	2 h			Mainframe Working Temperature			−10℃ ~50℃（14℉~122℉）
Communication Method	USB and wireless communication			Host Protection Grade			IP50
Wireless Distance	Unobstructed up to 160m			Sensor Protection Grade			IP68
Battery Type	li-ion Battery			Main Unit Size（mm）			106mm(L）48mm(W）37（T）
Lithium Battery Life	Not less than 1000 charge/discharge cycles			Weight			202 g
Storage Condition	−20℃ ～ 60℃（−4℉ ～ 140℉） 5%RH ～ 80%RH(condensationless)
