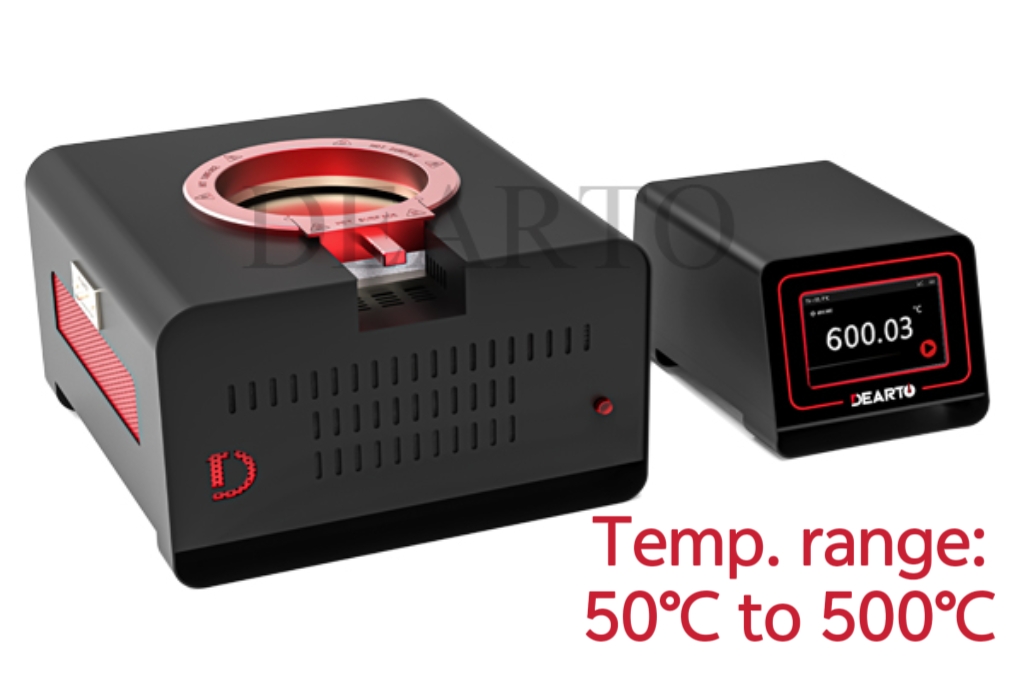

DTZ-450BG Surface Probe Temperature Calibrator (50℃ to 500℃)

Product Features

Wide temperature range, multiple range options: 35 to 400℃ /50 to 500℃/ 50 to 600℃.

High calibration plane size, up to 130 mm ± accuracy 0.5℃@200℃.

Stable temperature control ±0.3℃/10 min(@300℃).

High resolution 0.01℃.

Multi-stage temperature control, section PID control, zero overshoot.

Model Selection

DTZ-460BG

DTZ-450BG

DTZ-400BCG

Request a Quote

Or whatsapp +8618853850621

Description

Download

Introduction

DTZ Surface probe temperature calibrator is mainly used to calibrate various types of surface temperature sensors. such as surface cryogenic thermocouples, thermistors, film sensors, and ribbon sensors. By controller and heater, intelligent touch screen control, simple and convenient; effective use range of 130 mm, with communication interface, can communicate with the computer. This product can be used as an infrared thermal camera calibration source if slightly changed.

Product Characteristics

1. Wide temperature range, multiple range options: 35 to 400℃ /50 to 500℃,/ 50 to 600℃

2. High calibration plane size, up to 130 mm

3. ± accuracy 0.5℃@200℃

4. Rapid cooling, rapid stability: room temperature to 400℃ only 30 min, stable time only 8 min, equipped with a rapid cooling device to assist cooling, to achieve multiple rounds of inspection

5. Stable temperature control ±0.3℃/10 min(@300℃)

6. High resolution 0.01℃

7. Multi-stage temperature control, section PID control, zero overshoot

8. The measuring surface is made of Aerospace Composites with high hardness, good wear resistance and high thermal conductivity

9. Groove clamshell design can be used for calibration of L elbow surface temperature sensor

10. There is a standard device Jack on the side, which can insert the standard device directly below the center of the measuring surface and effectively improve the calibration accuracy

11. RS232 communication support, communication software

Technical Parameters

Model	DTZ - 400BCG	DTZ - 450BG	DTZ - 460BG
Temperature range	35 ~ 400℃	50℃ ~ 500℃	50℃ ~ 600℃
Calibration plane diameter	130mm
Uniformity	0.3℃ @ RT ≤ t ≤ 100℃ 0.7℃ @100℃ ＜ t ≤ 300℃ 1.2℃ @ 300℃ ＜ t ≤ 400℃ 1.8℃ @ 400℃ ＜ t ≤ 500℃
Stability (10min)	±0.2℃ / 10min @ RT ≤ t ≤100℃ ±0.3℃ / 10min@100℃＜ t ≤ 300℃ ±0.4℃ / 10min@300℃＜ t ≤ 400℃ ±0.6℃ / 10min@400℃＜ t ≤ 500℃
Resolution	0.001℃
Temp. rising time	Room temperatureto 400℃ , 30min
Temp. falling time	400℃toroom temperature (with rapid cooling device only 45min)
Stabilization time	8min
Communication Interface	RS-232
Sensor type	AA Grade Pt100
Heating furnace size	280(L)×270(W)×190(H) mm		325(L)×323(W)×214(H) mm
Controller size	218(L)×175(W)×145(H) mm		2220(L)×175(W)×144(H) mm
Total Weight	12kg
Storage condition	− 20℃ ~ 60℃ ( - 4 ℉~ 140 ℉) , 5%RH ~ 80%RH ( No condensation )
