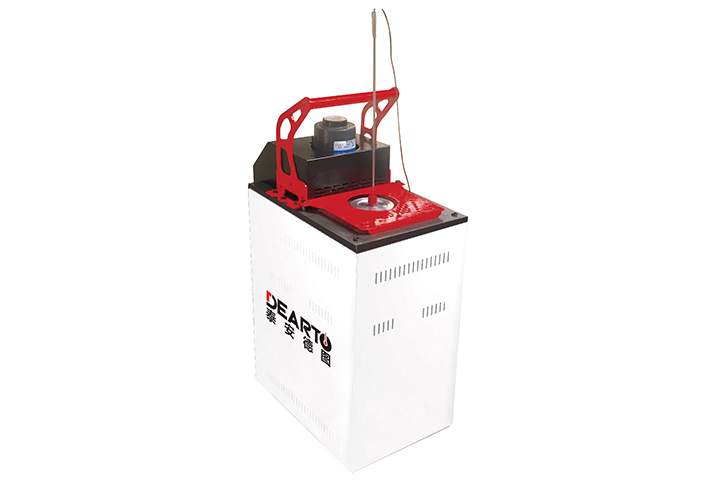

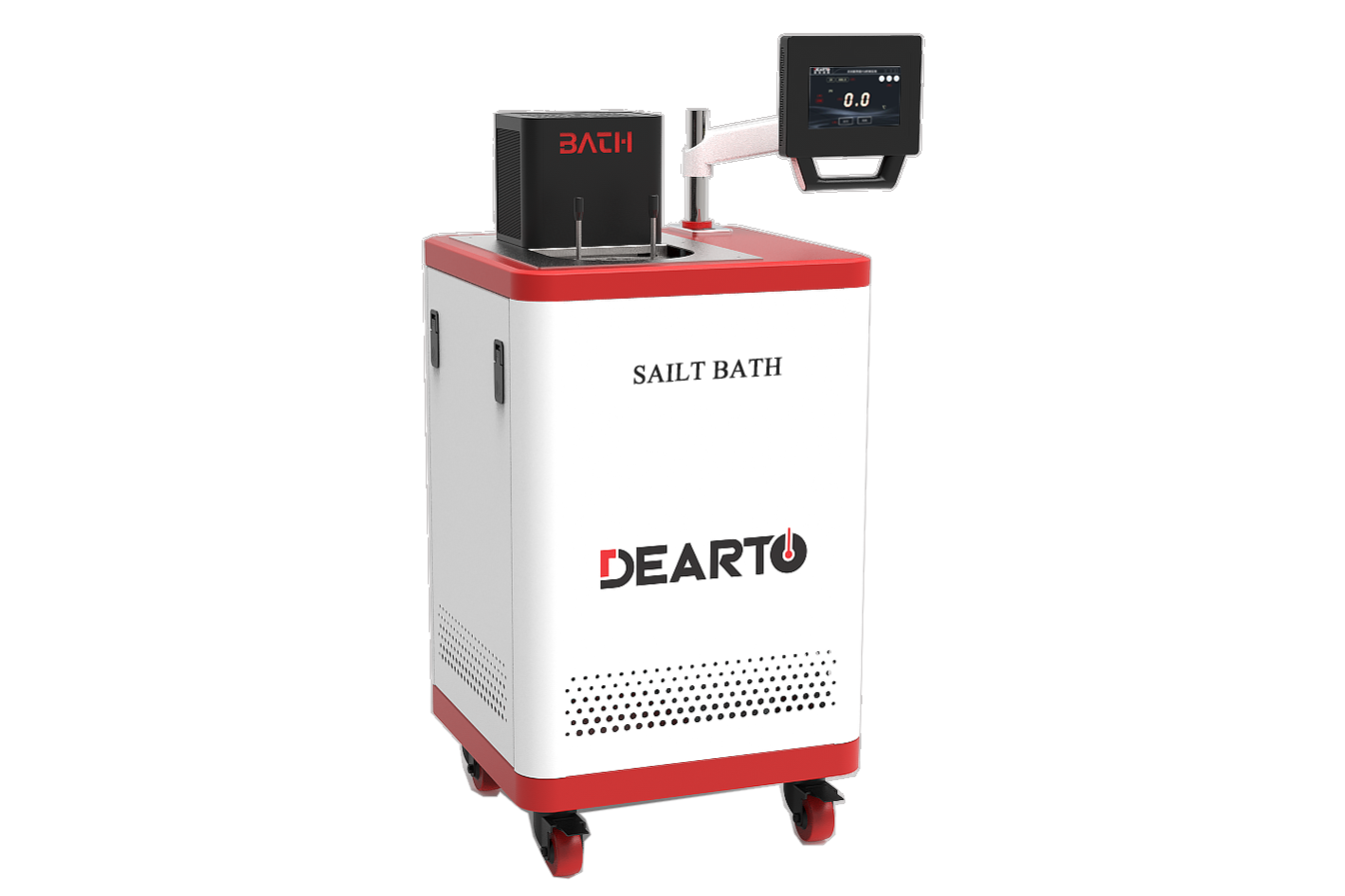

High Temperature Precision Salt Bath DTWG
Product Features
With independent heating system, stirring system and 0.1 level original imported Japanese temperature control system
Wide temperature range, high temperature control accuracy in all temperature ranges
Liquid medium is pressure-free, non-toxic and non-corrosive
The aperture of the detection jack can be customized according to different sizes
Suitable for high-precision detection of temperature elements such as thermocouples and thermal resistances
Request a Quote
Or Call +86-0538-5089056
Description
Download
Product Description
DTW high temperature precision salt baths is a new product developed according to the user's requirements for temperature element verifification. It has the same structure as the standard oil tank used in the laboratory. It has an independent heating system, a stirring system and an original Japanese version up to 0.1 The imported temperature control system provides users with a precise heat source. It has a wide temperature range, high temperature control accuracy throughout the temperature range, liquid medium pressureless, non-toxic, non-corrosive, and the detection and insertion hole diameter can be replaced by the old heat pipes.
DTW high temperature salt bath is suitable for high-precision detection of temperature components such as thermocouples and thermal resistances.
Product Features:
With independent heating system, stirring system and 0.1 level original imported Japanese temperature control system
Wide temperature range, high temperature control accuracy in all temperature ranges
Liquid medium is pressure-free, non-toxic and non-corrosive
The aperture of the detection jack can be customized according to different sizes
Suitable for high-precision detection of temperature elements such as thermocouples and thermal resistances.
Technical Indicators
| Product Name | Portable High Temperature Salt Bath | Laboratory high temperature precision salt bath | |
|---|---|---|---|
| Product Model | DTW-560B | DTW-560 | DTW-670 |
| Temperature Range | 180℃~560℃ | 180℃~560℃ | 450℃~670℃ |
| Temperature Fluctuation | ±0.01℃/10min | ±0.01℃/10min | ±0.01℃/10min |
| Radial Uniformity | ≤0.01℃ | ≤0.01℃ | ≤0.01℃ |
| Axial Uniformity | ≤0.02℃ | ≤0.02℃ | ≤0.02℃ |
| Work area size | Φ80×200(mm） | φ140×400（mm） | φ140×400（mm） |
| Rated Power | 1.0KW | 2.5KW | 2.5KW |
| Remark | 500~850℃, 850~1100℃ liquid bath for special medium can be customized | ||
