Overview

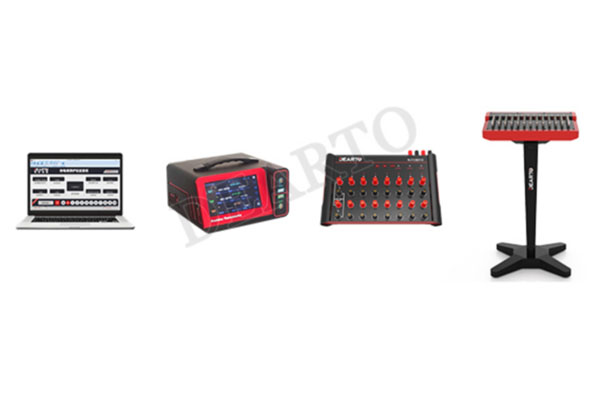

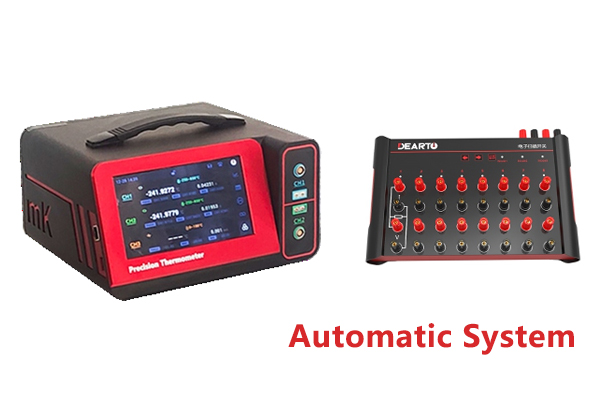

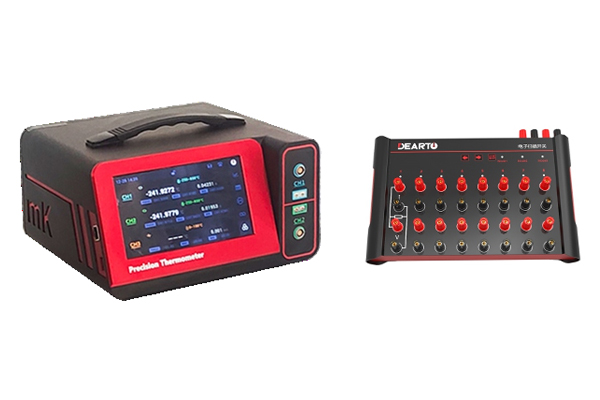

The DTZ-WK Electronic Scanning Switch Automatic Test System is designed for switching and acquiring signals from RTDs and thermocouples, making it suitable for industrial applications requiring multi-point temperature measurements in bulk. The DTMC-mK301-WK scanning switch module, with its outstanding performance and unique features, provides an efficient and precise solution for rapid switching and data acquisition of multi-channel temperature signals. As a functional expansion to the mK301 high-precision thermometer readout, the DTMC-mK301-WK enables real-time viewing of multi-channel, multi-type temperature signals, synchronously displaying electrical measurement and temperature data for each channel.
Features/Advantages
Flexible application Supports both manual and automatic testing modes.
Low parasitic EMF and fast channel switching Parasitic EMF ≤ 0.2 µV; channel connect/disconnect time < 100 ms.
Channel expansion for batch calibration Equipped with 8 DUT channels plus expansion ports; supports cascading up to 32 channels for batch testing.
Multi-sensor compatibility Automatically converts electrical measurements to temperature values in real time, with results displayed on the mK301 main interface; supports 2/3/4-wire RTDs and S/R/B/K/N/J/E/T/WRe3/WRe5 thermocouples.
Built-in CJC automatic compensation Automatically corrects for cold junction temperature variations to eliminate measurement errors, ensuring accurate thermocouple signal conversion.
Multiple mode switching Supports switching between 3-wire RTDs with single/double lead wires, 2-wire RTDs, 4-wire RTDs, and thermocouple modes.
Automatic calculation for 3-wire RTDs Automatically computes results for 3-wire RTDs (single or double lead) and displays them in real time on the mK301 interface.
RS232 communication RS232 interface enables efficient data transfer and system integration.
Multiple quick-connection interfaces Provides 4 mm banana jacks, U-type solder lugs, and standard binding posts to suit different applications and improve testing efficiency.
System Applications
RTD Automatic Test System
When integrated with the mK301 high-precision thermometer readouts, standard references, and a temperature source, the DTMC-mK301-WK forms a complete 2/3/4-wire RTD measurement system. It supports flexible manual/automatic operation modes, displays resistance and corresponding temperature values in real time, and uses built-in algorithms for precise conversion. All data are presented directly on the mK301 interface, enabling efficient end-to-end processing from signal acquisition to result analysis.
Thermocouple Automatic Test System
