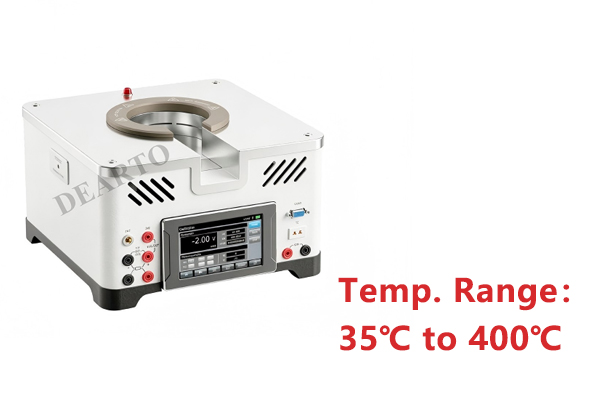

DTZ-MU400G Surface Probe Temperature Calibrator (Electrical Testing Version)

   The DTZ-400 Surface Probe Temperature Calibrator is designed for the calibration of various surface sensors. It is precisely compatible with devices of different sizes and types, including L-shaped sensors, thermistors, thin-film sensors, surface resistance thermometers, ribbon sensors, surface thermocouples, etc. The system starts heating with simple temperature settings and features fast and efficient temperature rise. Adopting multi-segment PID temperature control technology,  it ensures accurate and stable temperature regulation. Equipped with communication interfaces, it can directly exchange data with a computer.

· Wide temperature range with multiple range options: 35 ℃ ~ 400 ℃ / 50 ℃ ~ 500 ℃ / 50 ℃ ~ 600 ℃.

· High accuracy: ±0.5 ℃ @200 ℃.

·Rapid heating and cooling with fast stabilization: Only 30 minutes to heat up from ambient temperature to 400 ℃.

·Stable temperature control: ±0.3 ℃/10min (@300℃).

· Dual-channel measurement function: Fitted with dedicated independent standard input channels. Devices under calibration cover various types of sensors such as resistance temperature detectors, thermocouples, transmitters, meters and switches.

· Built-in high-precision electrical measurement unit: Standard 6½-digit / 7½-digit high-precision measurement module (grade optional), with electrical measurement resolution no less than 0.0000001℃.

· Programmed heating and cooling control: Supports programming of multiple temperature points and multi-segment slope temperature control. The system automatically completes temperature rise, fall and setpoint switching at the configured rate.

·Recessed calibration position:It is specially designed for L-elbow surface temperature sensors, enabling quick positioning and fixing for more convenient calibration.

· Side reference thermometer jack: The reference standard can be inserted directly beneath the center of the measuring surface to minimize temperature measurement deviation and improve calibration accuracy.

· Intelligent communication: Standard equipped with RS232/RS485, WiFi and LAN Ethernet interfaces. It supports data export via USB flash drive to meet the requirements of laboratory information management.
