Product Description

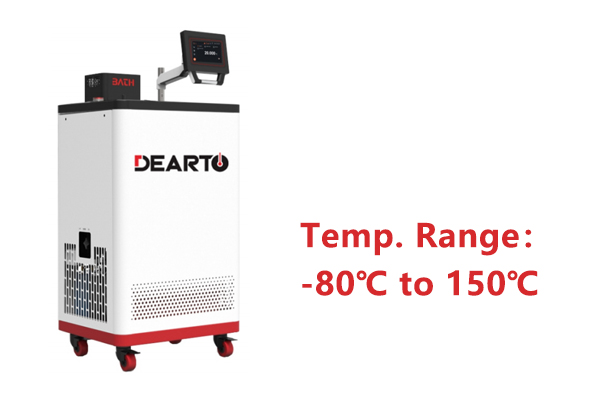

DTS-T Series high and low temperature calibration bath is on the basis of the original standard calibration bath to meet the different needs of customers for temperature measurement range. The technical indicators of the DTS-T Series high and low temperature calibration bath is basically the same as the original ordinary calibration bath, but meet the different needs of customers in the temperature range, The customer originally needed two different constant temperature bath to complete, now only needs one tank to complete. At the same time, the DTS-T300 fast circulating heating and cooling oil bath also provides the return measurement function for customers to verify pressure thermometers and bimetal thermometers, which is convenient for customers to use.
DTS-T300 can cycle fast heating and cooling oil tank, the cooling speed is fast, it takes about 15 minutes to drop from 300 °C to 100 °C, and it has a return measurement function.
Precision type Features
■ The bath body adopts the working method of double-chamber side stirring, and the temperature field uniformity is good.
■ Intelligent PID control, with excellent temperature field stability and uniformity.
■ It adopts a high-resolution display instrument with a resolution of 0.001°C.
■ The imported compressor has stable and reliable performance, and the optimized refrigeration system cools down faster.
■ Wide temperature range: -30 ℃ ~ 180 ℃ detection range, no need to replace the working medium.
■ RS-232 / RS-485 communication interface is optional, which can realize computer control.
■ Humanized design, comfortable and convenient operation.
Intelligent type Features
■ The multi-function display window supports multi-touch, and the operation is simple and convenient.
■ Intelligent slope temperature control, adjustable temperature control rate.
■ Real-time display and calculation of fluctuations, real-time display of equipment stability.
■ Support multi-point automatic calibration and correction.
■ The temperature control curve is displayed in real time, and it supports free panning and zooming and one-key screenshot saving.
■ Support USB, WIFI, WLAN, serial communication.
■ Anti-oil design, built-in overflow circuit to prevent media from polluting the countertop.
Technical indicators
|
Name
|
High and Low Temperature Thermostatic Calibration Bath
|
Circulating Rapid Cooling Oil Bath
|
|
Model
|
DTS - T150G
|
DTS - T180G
|
DTS - CT150G
|
DTS - CT180G
|
DTS - CT300TG
|
|
Temp. range
|
-20 ~ 150℃
|
-20 ~ 180℃
|
-20 ~ 150℃
|
-20 ~ 180℃
|
70 ~ 300℃
|
|
-30 ~ 150℃
|
-30 ~ 180℃
|
-30 ~ 150℃
|
-30 ~ 180℃
|
|
Control style
|
Regular temp. controller
|
Regular temp. controller
|
Smart touch screen
|
Smart touch screen
|
Regular temp. controller
|
|
Stability
|
± 0.01℃ / 10min
|
|
Radial uniformity
|
≤ 0.01℃
|
≤ 0.01℃
|
|
Axial uniformity
|
≤ 0.02℃
|
≤ 0.01℃
|
|
Working media
|
L40N -180
|
L30 -300
|
|
Working area
|
φ130×480（mm）
|
φ150×480（mm）
|
|
Volume
|
18L
|
23L
|
|
Power
|
2.8 Kw
|
2.8 Kw
|
|
External dimensions
|
660(L）×540（W）×1120（H）（mm）
|
|
Cooling down time
|
20°C to -30°C @55min ; 20°C to -40°C @95min ; RT to 0℃ @30min
|
300°C to 100°C @15min
|
|
Ramp-up time
|
-30°C to 0°C @20min ; 0°C to 180°C @40min
|
|
