DTW High Temperature Calibration Salt Bath

Product Features

With independent heating system, stirring system and 0.1 level original imported Japanese temperature control system

Wide temperature range, high temperature control accuracy in all temperature ranges

Liquid medium is pressure-free, non-toxic and non-corrosive

The aperture of the detection jack can be customized according to different sizes

Suitable for high-precision detection of temperature elements such as thermocouples and thermal resistances

Model Selection

DTS-CT300G

DTS-CT01G
DTS-CT10G
DTS-CT30G
DTS-CT40G
DTS-CT60G
DTS-CT80G

DTS-300G
DTS-95G
DTS-10G

DTS-100CH-G
DTS-160CH-G
DTS-180CH-G

DTS-T150G
DTS-T180G
DTS-T300G
DTS-CT150G
DTS-CT180G

DTW-560BG
DTW-560G
DTW-670G

DTF-CT01SG
DTF-CT30SG
DTF-01SG
DTF-30SG
DTF-01G

DTS-300-T500G
DTS-80-T500G
DTS-300-T300G
DTS-80-T300G

Request a Quote

Or whatsapp +8618853850621

Description

Download

Product Description

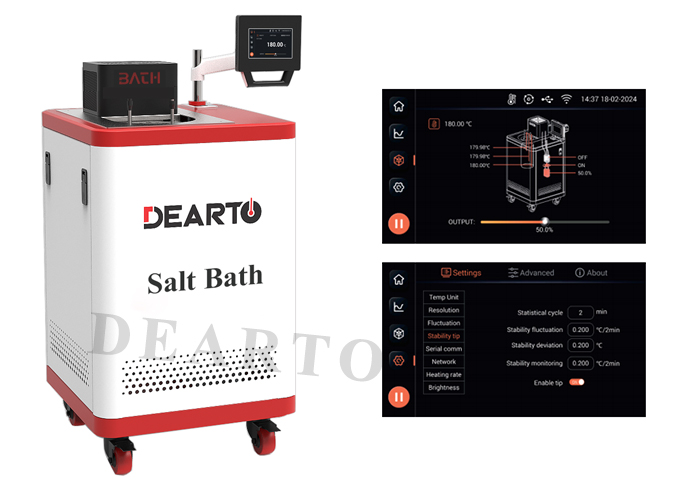

DTW High Temperature Calibration Salt Bath is a new product developed according to the user's requirements for temperature element verifification. It has the same structure as the standard oil tank used in the laboratory. It has an independent heating system, a stirring system and an original Japanese version up to 0.1 The imported temperature control system provides users with a precise heat source. It has a wide temperature range, high temperature control accuracy throughout the temperature range, liquid medium pressureless, non-toxic, non-corrosive, and the detection and insertion hole diameter can be replaced by the old heat pipes.

DTW High Temperature Calibration Salt Bath is suitable for high-precision detection of temperature components such as thermocouples and thermal resistances.

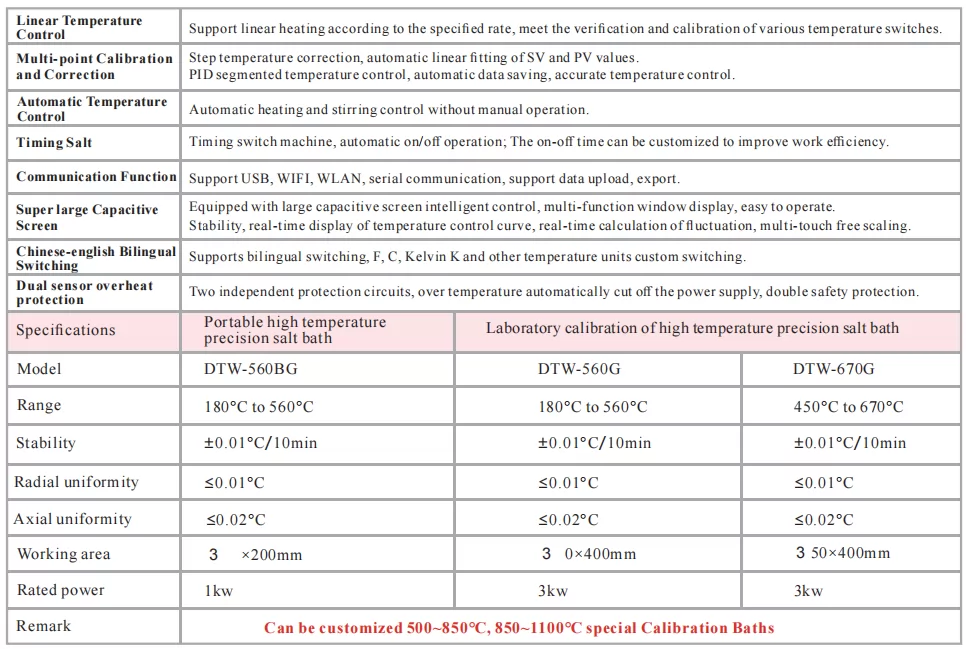

Technical Indicators

Name	Portable high temperature calibration salt bath	Laboratory high temperature calibration salt bath
Model	DTW-560BG	DTW-560G	DTW-670G
Temp range	180℃ to 560℃	180℃ to 560℃	450℃ to 670℃
Radial uniformity	≤ 0.01℃	≤ 0.01℃	≤ 0.01℃
Axial uniformity	≤ 0.02℃	≤ 0.02℃	≤ 0.02℃
Temp stability	± 0.01℃/10min	± 0.01℃/10min	± 0.01℃/10min
Working area	φ100×200	φ140×400	φ140×400
External dimensions	350×350×800（mm）	550×650×1000（mm）	550×650×1000（mm）
Power	1kW	3kW	3kW
Remarks	Liquid baths with special media of 500 ~ 850℃ & 850 ~ 1100℃ can be customized.

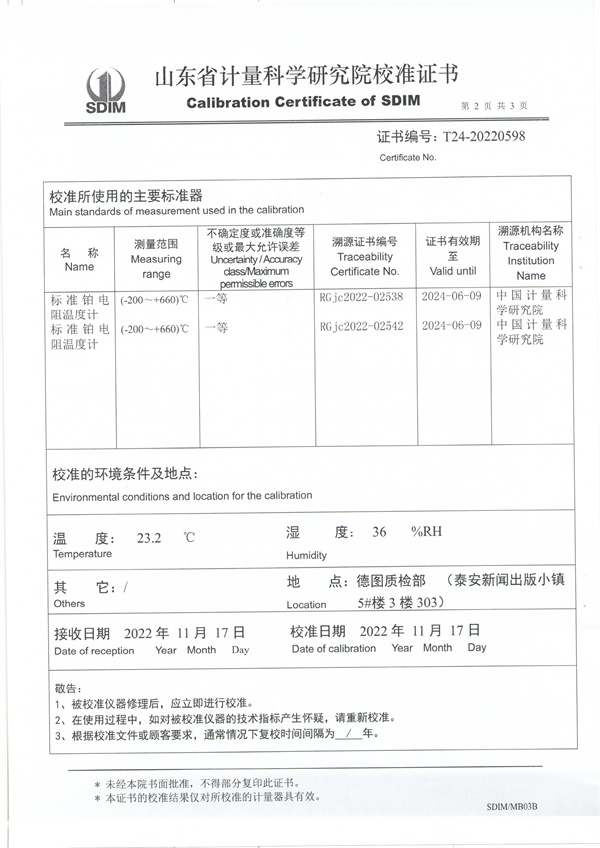

Certificates
