DTS-B Portable Smart Heating Calibration Oil Bath
Overview
DTS-B Portable Smart Calibration Bath is a high-precision, self-regulating temperature calibration device. It features excellent stability, a uniform temperature field, and accurate temperature control. Utilizing a fully enclosed compressor refrigeration system and intelligent PID regulation, it achieves automatic temperature control. The unit has a compact structure, is lightweight, portable, and durable. It is suitable for on-site calibration/verification of various temperature sensors, including industrial platinum resistance thermometers, low-temperature thermocouples, sheathed thermocouples, working liquid-in-glass thermometers, standard mercury thermometers, bimetal thermometers, and pressure thermometers.
Product Features
Unaffected by ambient conditions: The -40 °C calibration point remains stable and unaffected in ambient temperatures ranging from 15 °C to 35 °C。
Intelligent rapid cooling: Cooling from 150 °C to 25 °C takes as short as 30 minutes and passes multi-cycle hysteresis testing.
Press-seal design: Features a quick-press sealing structure for leak prevention and convenient on-site transport.
Smart touchscreen interface: Equipped with an intelligent touchscreen and user-friendly interface. Temperature resolution is up to 0.001 °C.
Real-time curve display: Displays live temperature curves and automatically calculates stability.
Multi-point calibration: Supports calibration at multiple temperature points; temperature sensors allow segmented multi-point correction with fully automatic segmented control.
Communication functionality: Equipped with RS-232 communication port for connection with an upper-level host system.
Overheat protection: Includes over-temperature protection and heating limit functions for safe and reliable operation.

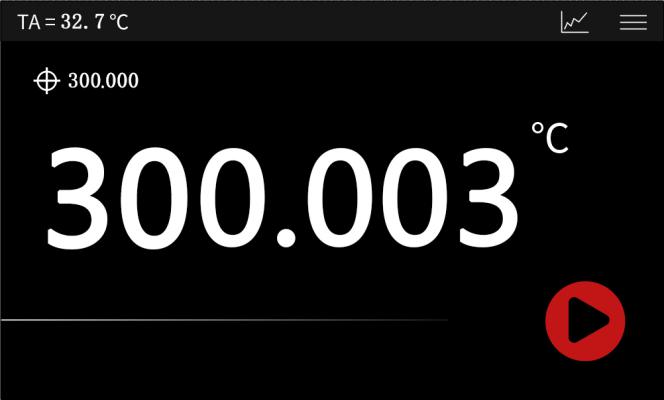

Touch screen operation interface

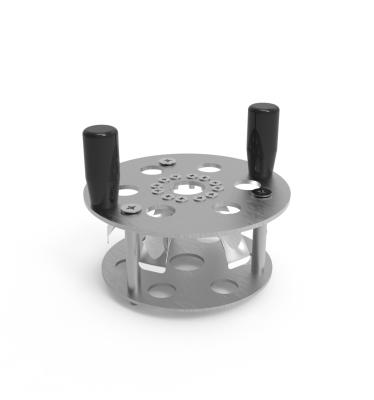

Flange
Technical Parameters
|
Product name |
Portable Smart Heating Calibration Oil Bath |
Micro model |
||
|
Model |
DTS-180BG |
DTS-300BG |
DTS-180BG-mt |
DTS-300BG-mt |
|
Temp. range |
60℃ ~ 180℃ |
60℃ ~ 300℃ |
60℃ ~ 180℃ |
60℃ ~ 300℃ |
|
Bath liquid |
L30-300 |
|||
|
Control |
Smart Touch Screen |
|||
|
Temp. stability |
±0.01℃ /10min( 60℃ ); ±0.01℃/10min ( 100℃ ) ; ±0.02℃/10min ( 300℃ ) |
|||
|
Temp. uniformity |
≤ 0.01℃ ( 60℃); ≤ 0.01℃ ( 100℃); ≤ 0.02℃ ( 200℃); ≤ 0.02℃ ( 300℃) |
|||
|
Resolution |
0.001℃ |
|||
|
Access opening × depth (mm) |
φ80×280 |
φ60×250 |
||
|
Volume |
3.8 L |
2.3 L |
||
|
Power |
1 kW |
1 kW |
||
|
Dimensions（L×W×H） |
220×370×425（mm） |
185×331×400（mm） |
||
|
Heating rate |
3 °C / min |
|||
|
Cooling rate |
300 °C to 100 °C @ 240 min |
|||
