DTS-MUB Portable Smart Refrigerated Calibration Bath (Electrical Measurement Version)
Introduction
The DTS-BG Ultra Portable Intelligent Thermostatic Bath is a high-precision automatic temperature verification device. Compact and lightweight, it features a press type quickseal structure for leak proof performance and is suitable for on-site transportation. Equipped with a 5-inch high-definition touch screen, it supports multi-segment program temperature control and one-click automatic calibration.
Integrated with a high-precision electrical measurement module, the device is furnished with a high-precision electrical measurement module, the device is furnished with an independent standard channel and multiple channels under test. It is compatible with thermocouples, thermal resistors, temperature transmitters, temperature switches and other devices. It can simultaneously acquire thermal-field and measured data, display various test parameters in real time, and automatically judge whether the tested instruments are qualified.It supports full lifecycle management of sensors and can generate standard calibration reports.
With built-in large capacity storage, it can store more than 100 000 records with search function available. Hierarchical permission management is also provided to meet the requirements of integrated on site verification and data traceability. It is widely applied for on site verification and calibration of various temperature sensors.
Product Features
Supports -40°C ~ 180°C ultra-wide temperature coverage; full-range unit requires no medium change.
Intelligent High-Speed Cooling
150°C down to 25°C in only 30 min, meeting requirements for repeated testing cycles.
Touch HMI
Equipped with 5-inch HD touchscreen, full graphical operating interface, intuitive and easy to use.
Multi-Point Auto Calibration
Supports multi-point self-correction mode; one-click start for automatic calibration process.
Adaptive Intelligent Temperature Control
Based on PID auto-tuning technology, automatically adjusts parameters according to different load/medium characteristics.
Sealed Structure
Press-type quick seal design, leak-proof, convenient for on-site transportation.
Adjustable Heating/Cooling Rate
Multi-temperature-point curve setting; automatic completion of heating, cooling, and setpoint switching.
Full-Category Sensor Adaptation
Configured with independent standard channel; supports RTD, thermocouple, temperature switch, etc.
Sensor Management Function
Supports full-featured sensor management: add, delete, modify, view, copy, etc.
High-Precision Electrical Measurement Unit
Standard 6½-digit and 7½-digit high-precision measurement module; electrical resolution no less than 0.000001.
Automatic Data Processing
Supports automatic conformity determination based on accuracy class of tested instruments; outputs standardized calibration results.
Multi-Channel Synchronous Auto Acquisition
Automatically scans all channels; synchronously acquires temperature field and test data.
Full-Process Real-Time Monitoring
Real-time display of electrical measurement data, task progress, tolerance, deviation, electrical values, temperature values, etc.
Data Storage & Retrieval
Built-in storage for 100,000+ calibration records; supports multi-condition combined search.
Permission Management
Supports hierarchical permission management; controls calibration operation, backup/recovery, and class configuration.

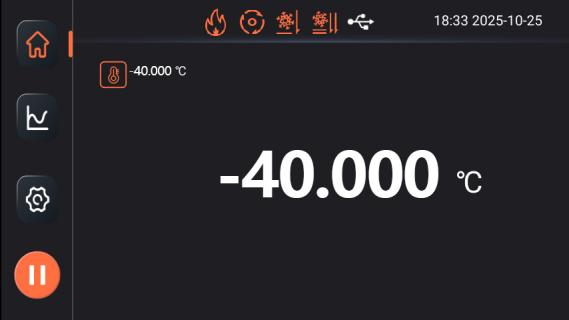

Touch screen operation interface
Technical Parameters
|
Product Name |
Portable Smart Refrigerated Calibration Bath (Electrical Measurement Version) |
||||
|
Model |
DTS-MU20BG |
DTS-MU30BG |
DTS-MU30BG |
DTS-MU40BG |
|
|
Temp range |
-20 ~ 150℃ |
-30 ~ 150℃ |
-30 ~ 150℃ |
-40 ~ 150℃ |
|
| -20 ~ 180℃ | -30 ~ 180℃ | -30 ~ 180℃ | -40 ~ 180℃ | ||
|
L40N-180 |
|||||
|
Control style |
Smart Touch Screen |
||||
|
Uniformity |
≤ 0.02℃（ 0℃ ）； ≤ 0.01℃（ 100℃ ） |
||||
|
Stability |
0.02℃ / 10min（ 0℃ ） |
||||
|
Working area |
ф80×280（mm） |
||||
|
Max power |
1 kW |
||||
|
Overall dimensions |
225×430×500（mm） |
||||
|
Cooling time |
0°C down to -40°C @ 50min ; RT down to 0°C @ 30min |
||||
|
Ramp-up time |
-40°C to 0°C @ 20min ; -20°C to 0°C @ 10min 0°C to 100°C @ 25min ; 30°C to 180°C @ 55min |
||||
