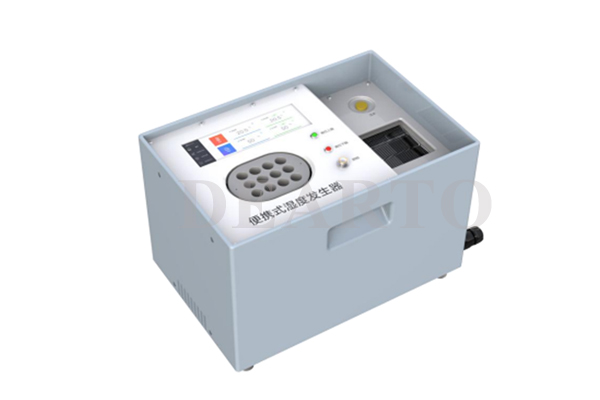

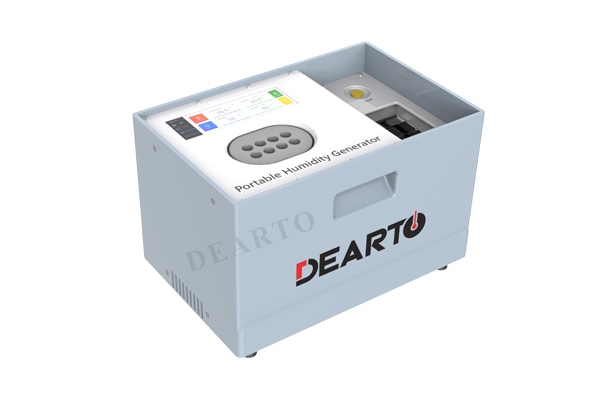

TADT-4G Portable Humidity Generator (2.3 L)
Introduction
Key Features
· Efficient Test Chamber Space
The test chamber offers a volume 3 to 5 times larger than comparable products.
· Test Chamber Compatibility
It is compatible with a wide range of immersion-type chilled mirror dew point sensor heads, allowing for convenient comparative calibrations.
· Sensor Port Design
Modular sensor ports accommodate temperature and humidity probes and transmitters of various diameters.
· Measurement Chamber Window and Lighting
A transparent observation window combined with an integrated lighting system facilitates easy reading of small-scale temperature and humidity instruments.
· Small Probe Calibration Capacity
Supports simultaneous calibration of 10 to 15 miniature temperature and humidity probes.
· Digital Meter Calibration Capacity
Supports simultaneous calibration of 3 to 5 standard-sized digital temperature and humidity meters.
· Test Chamber Temperature Accuracy
Ensures temperature uniformity of ≤ 0.1°C across the full calibration range of 5°C to 50°C.
· Working Status Monitoring
Real-time display of liquid level and desiccant status.
· External Signal Input
Equipped with four external signal input channels: 0~1 V, 0~5 V, 4~20 mA. (Applicable models: TADT-1G/TADT-2G)
· Humidity Conversion Function
Built-in humidity conversion software supports conversion between temperature, humidity and dew point temperature.
· Temperature & Humidity Trend Display
Equipped with a 7-inch color LCD touch screen, supports temperature and humidity curve display.
· Drying Cylinder Replacement Design
External-mounted drying cylinder allows online desiccant replacement when the instrument is powered on.
· Drying Cylinder Zone Function
Dual-zone design supports both molecular sieve and color-changing silica gel desiccants.
Technical Parameters
|
Model |
TADT-1G |
TADT-2G |
TADT-3G |
TADT-4G |
|
|
Working Volume |
5L |
9L |
1.5L |
2.3L |
|
|
Working Chamber Size (mm) |
160*175*175 |
280*175*175 |
120*100*130 |
Φ135*135（H） |
|
|

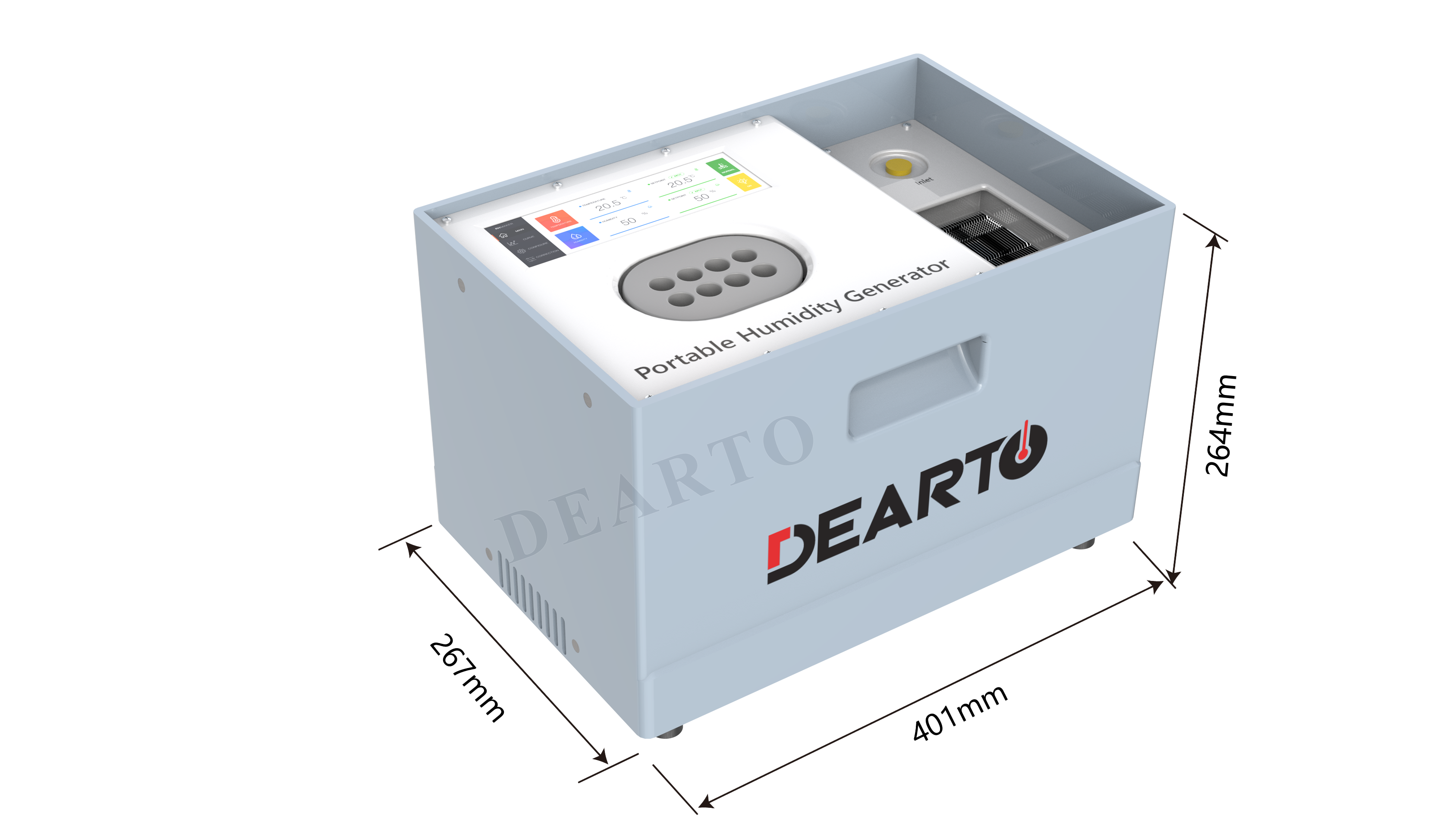

External dimensions (mm) |
550*300*600 |
370*480*200 |
400*265*265 |
||
|
Weight |
20 kg |
13.7 kg |
8 kg (Optional battery-powered.) |
||
|
Humidity Range |
5 % RH to 95 % RH (20 ±3 ℃) |
5 % RH to 95 % RH (20 ±3 ℃) |
|||
|
Humidity Stability |
±0.5 % RH |
±0.5 % RH(5% to 80%RH; 20 ℃) ±1% RH (80% to 95%RH; 5 to 50 ℃) |
|||
|
Humidity Uniformity |
≤0.5 % RH (20±3 ℃) |
≤0.5 % RH(20 ℃) ≤1 % RH(5 to 50 ℃) |
|||
|
Max Permissible RH Error |
±0.8 RH (20 ℃) ±1.5%RH (5 to 50 ℃) |
±1% RH (20 ℃) ±1.5% RH (5 to 50 ℃) |
|||
|
Temperature Range |
5 ℃ to 50 ℃ (Customizable: -20℃ / -10℃ / -5℃ / 0℃) |
5 ℃ to 50 ℃ |
5 ℃ to 50 ℃ |
5 ℃ to 50 ℃ |
|
|
Temperature Stability |
±0.05 ℃ |
±0.05 ℃ (20 ℃) ±0.1 ℃ (5 to 50 ℃)
|
|||
|
Temperature Uniformity |
≤0.1 ℃ (20 ±3 ℃) |
≤0.1 ℃ (20 ℃) ≤0.15 ℃ (5 to 50 ℃)
|
|||
|
Max. Permissible Temp. Error |
±0.05 ℃ (20 ±3 ℃) ±0.1 ℃ (5 to 50 ℃) |
±0.05 ℃ (20 ±3 ℃) ±0.1 ℃ (5 to 50 ℃) |
|||
|
Sensor Test Window |
Modular design, support customized on demand. |
||||
|
Standard Opening Diameter(mm) and Quantity of the Test Window |
Max opening diameter:φ60 Max number of openings: 15 Customization supported: Transparent test window |
No.1: φ15 *8 |
|||
|
No.2: φ41 *1, φ15 *4 |
|||||
|
No.3: φ37 *1, φ15 *4 |
|||||
|
No.4: φ41 *1(Circular glass viewing window), φ15 *4 |
|||||
|
Opening diameter and quantity are customizable. |
|||||
|
Power |
750 W |
360 W |
|||
|
Communication Interface |
RS232 / RS485 |
||||
|
Power Supply |
AC 220 V ±10%, 50 Hz |
||||
|
Env. |
Temp |
10 ℃~35 ℃ |
|||
|
RH |
0% RH~85% RH |
||||
