DTS-B Portable Smart Calibration Bath is a high-precision, self-regulating temperature calibration device. It features excellent stability, a uniform temperature field, and accurate temperature control. Utilizing a fully enclosed compressor refrigeration system and intelligent PID regulation, it achieves automatic temperature control. The unit has a compact structure, is lightweight, portable, and durable. It is suitable for on-site calibration/verification of various temperature sensors, including industrial platinum resistance thermometers, low-temperature thermocouples, sheathed thermocouples, working liquid-in-glass thermometers, standard mercury thermometers, bimetal thermometers, and pressure thermometers.

Product Features

Unaffected by ambient conditions: The -40 °C calibration point remains stable and unaffected in ambient temperatures ranging from 15 °C to 35 °C。

Intelligent rapid cooling: Cooling from 150 °C to 25 °C takes as short as 30 minutes and passes multi-cycle hysteresis testing.

Press-seal design: Features a quick-press sealing structure for leak prevention and convenient on-site transport.

Smart touchscreen interface: Equipped with an intelligent touchscreen and user-friendly interface. Temperature resolution is up to 0.001 °C.

Real-time curve display: Displays live temperature curves and automatically calculates stability.

Multi-point calibration: Supports calibration at multiple temperature points; temperature sensors allow segmented multi-point correction with fully automatic segmented control.

Communication functionality: Equipped with RS-232 communication port for connection with an upper-level host system.

Overheat protection: Includes over-temperature protection and heating limit functions for safe and reliable operation.

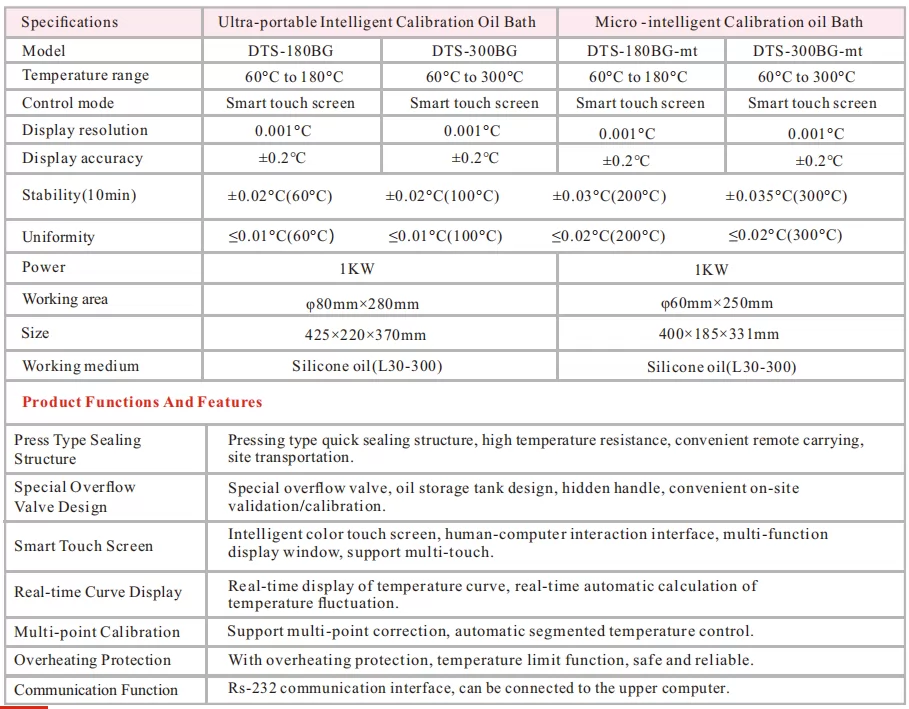

Technical Parameters

Product name	Portable Smart Heating Calibration Oil Bath		Micro model
Model	DTS-180BG	DTS-300BG	DTS-180BG-mt	DTS-300BG-mt
Temp. range	60℃ ~ 180℃	60℃ ~ 300℃	60℃ ~ 180℃	60℃ ~ 300℃
Bath liquid	L30-300
Control	Smart Touch Screen
Temp. stability	±0.01℃ /10min( 60℃ ); ±0.01℃/10min ( 100℃ ) ; ±0.02℃/10min ( 300℃ )
Temp. uniformity	≤ 0.01℃ ( 60℃); ≤ 0.01℃ ( 100℃); ≤ 0.02℃ ( 200℃); ≤ 0.02℃ ( 300℃)
Resolution	0.001℃
Access opening × depth (mm)	φ80×280		φ60×250
Volume	3.8 L		2.3 L
Power	1 kW		1 kW
Dimensions（L×W×H）	220×370×425（mm）		185×331×400（mm）
Heating rate	3 °C / min
Cooling rate	300 °C to 100 °C @ 240 min
