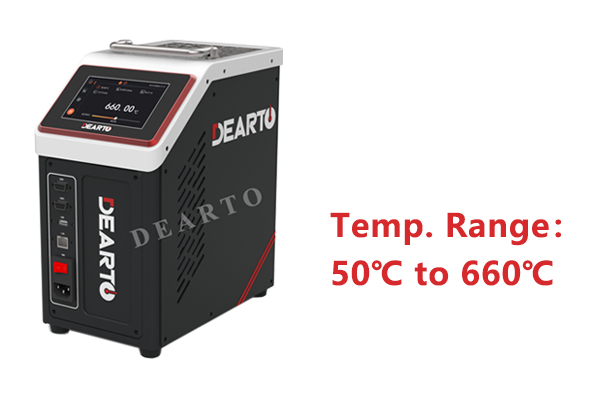

DTG High-Temperature Smart Dry Block Temperature Calibrator
Introduction
The DTG smart Dry Block Calibrator is a reliable and stable low, medium, and high-temperature constant temperature source suitable for both field and laboratory use. It meets the requirements of on-site calibration applications in terms of accuracy, speed, stability, and portability. Designed with a strong focus on user needs in field environments, the instrument combines lightweight construction, portability, and rapid operation while delivering stability, consistency, and accuracy comparable to similar laboratory equipment.
Functions & Features
Smart touchscreen interface: High-resolution color capacitive screen with bilingual (Chinese/English) support. Temperature units (°C/°F) can be freely switched. Intuitive operation with real-time calibration status display.
Rapid calibration: Fast temperature ramp-up and cooldown with minimal stabilization time.
Lightweight and portable: Compact and lightweight with an insulated handle located away from the heat zone—ideal for field calibration and verification work.
Customizable inserts: Inserts can be customized based on the insertion depth and diameter of the sensors under test.
Built-in protection: Internal over-temperature protection ensures safe and stable operation.
Multi-point correction: Supports automatic calibration and correction at multiple temperature points. Segmental PID control enables one-button heating and fully automatic temperature control.
Communication interface: Equipped with RS-232 communication port. Enables data transfer to PC with automatic data logging.
Technical Parameters
|
High Temperature Smart Dry Block Temperature Calibrator |
|||
|
Model |
DTG - 1000G |
DTG - 1200 - BG |
DTG - 1200 - AG |
|
Temperature range |
300℃ ~ 1000℃ |
300℃ ~ 1200℃ |
300℃ ~ 1200℃ |
|
Language/unit |
Fahrenheit &Celsius free switch |
||
|
Control mode |
Smart touch screen, multi-point calibration |
||
|
Display resolution |
0.1℃ |
||
|
Size of soaking block |
Φ6.5mm、Φ12mm （Diameter & quantity can be customized） |
||
|
Radial uniformity |
≤ 0.5℃ |
≤ 0.8℃ |
≤ 1.0℃ |
|
Stability |
± 0.2℃ |
± 0.2℃ |
± 0.4℃ |
|
Well depth (mm) |
150 |
||
|
Dimensions (mm) |
285×170×335 |
||
|
Power |
2200W |
||
|
Power supply |
220V/50Hz（or 110V/60Hz） |
||
