Precision Sailt Baths DTW
Product Features
It has an independent heating system, a stirring system and an original Japanese version up to 0.1 The imported temperature control system provides users with a precise heat source
It has a wide temperature range, high temperature control accuracy throughout the temperature range
Liquid medium pressureless, non-toxic, non-corrosive
Request a Quote
Or whatsapp +8618853850621
Description
Download
Introduction

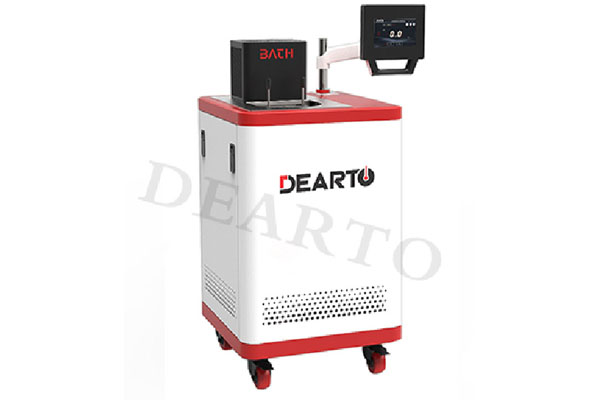

DTW high-temperature precision salt baths is a new product developed according to the user's requirements for temperature element verification. It has the same structure as the standard oil tank used in the laboratory. It has an independent heating system, a stirring system and an original Japanese version up to 0.1 The imported temperature control system provides users with a precise heat source. It has a wide temperature range, high temperature control accuracy throughout the temperature range, liquid medium pressureless, non-toxic, non-corrosive, and the detection and insertion hole diameter can be replaced by the old heat pipes.
DTW high temperature salt bath is suitable for high-precision detection of temperature components such as thermocouples and thermal resistances.
Technical Parameters
Product name | High Temperature Precision Portable Sailt Bath | Laboratory calibration of High Temperature Precision Sailt Bath | |
---|---|---|---|
Model | DTW-560BG Sailt Bath | DTW-560G Sailt Bath | DTW-670G Sailt Bath |
Temperature Range | 170℃~560℃ | 170℃~560℃ | 450℃~670℃ |
Fluctuation(10min) | ±0.01℃ | ||
Radial Uniformity | ≤0.01℃ | ||
Axial Uniformity | ≤0.02℃ | ||
Working Area(MM) | φ100×200 | φ140×400 | |
Overall Dimensions(mm) | 350(L)×350(W)×800(H) | 550(L)×650(W)×1000(H) | |
Power | 1KW | 2.5KW | |
Remark | Can be customized 500℃~850℃,850℃~1100℃ special medium liquid bath |
