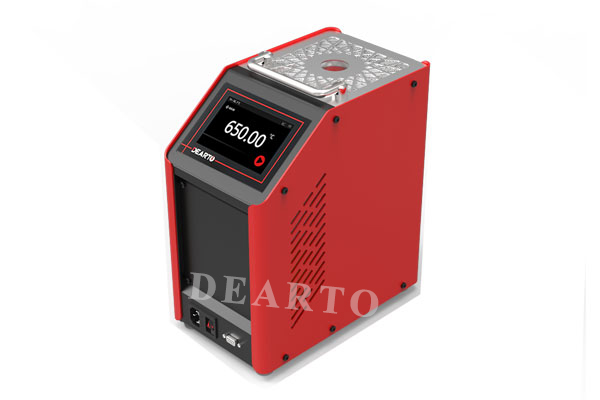

DTG Mid - Temperature Smart Dry Block Calibrator
Introduction
DTG series mid - temperature smart dry block temperature calibrator furnace, simple operation, light and portable, accurate temperature control. Its calibration temperature range can be from 50℃ to 660℃.
Functions & Features
Smart touchscreen interface: High-resolution color capacitive screen with bilingual (Chinese/English) support. Temperature units (°C/°F) can be freely switched. Intuitive operation with real-time calibration status display.
Rapid calibration: Fast temperature ramp-up and cooldown with minimal stabilization time.
Lightweight and portable: Compact and lightweight with an insulated handle located away from the heat zone—ideal for field calibration and verification work.
Customizable inserts: Inserts can be customized based on the insertion depth and diameter of the sensors under test.
Built-in protection: Internal over-temperature protection ensures safe and stable operation.
Multi-point correction: Supports automatic calibration and correction at multiple temperature points. Segmental PID control enables one-button heating and fully automatic temperature control.
Communication interface: Equipped with RS-232 communication port. Enables data transfer to PC with automatic data logging.
Technical Parameters
|
Mid - Temperature Smart Dry Block Temperature Calibrator |
|||
|
Model |
DTG-450G |
DTG-660BG |
DTG-660AG |
|
Temperature range |
50℃ ~ 450℃ |
50℃ ~ 660℃ |
50℃ ~ 660℃ |
|
Language/unit |
Fahrenheit &Celsius free switch |
||
|
Control mode |
Smart touch screen, multi-point calibration |
||
|
Display resolution |
0.01℃ |
||
|
Size of soaking block |
Φ 4.5mm 、Φ 6.5mm 、Φ 8mm 、Φ 10mm （Diameter & quantity can be customized） |
||
|
Radialuniformity |
≤ 0.2℃ |
≤ 0.15℃ |
≤ 0.3℃ |
|
Stability |
± 0.15℃ |
± 0.1℃ |
± 0.2℃ |
|
Well depth (mm) |
150 |
||
|
Dimensions (mm) |
285×170×335 |
||
|
Power supply |
220V/50Hz（or 110V/60Hz） |
||
